Axle Components Shop NZ

An Introduction to Trailparts™ Axle Parts

Trailparts™ axle components are renowned for their quality and consistency, and using only the best quality components means customers can specify these critical parts with absolute confidence. It’s the detail that makes the difference, and Dacromet hubs, high grade 1045 axle steel and quality bearings are standard features of all hubs and stub axles.

  • Dacromet finish on hubs
  • Marine grade triple-lip waterproof seals
  • Quality taper roller bearings
  • 215mm long 1045 stub axles
  • Custom and non-standard stud patterns available

The Revolutionary, Trailparts™ Unihub

trailer hub supplier explanation diagram

Trailparts Unihub uses unit bearings with back-to-back duplex designs and integrated seals. These feature super-finished bearing raceways and a lower coefficient of friction in operation, in turn generating less heat and leads to longer life. Bearings are also preloaded at manufacture, which means the chance of an installer causing damage through over-tightening is eliminated.

Both variants we use are a sealed-for-life design that doesn’t require any maintenance. When used on Trailparts assembled axles, in conjunction with the secondary seals being fitted, carry a 3 year warranty - another Australia trailer industry first.

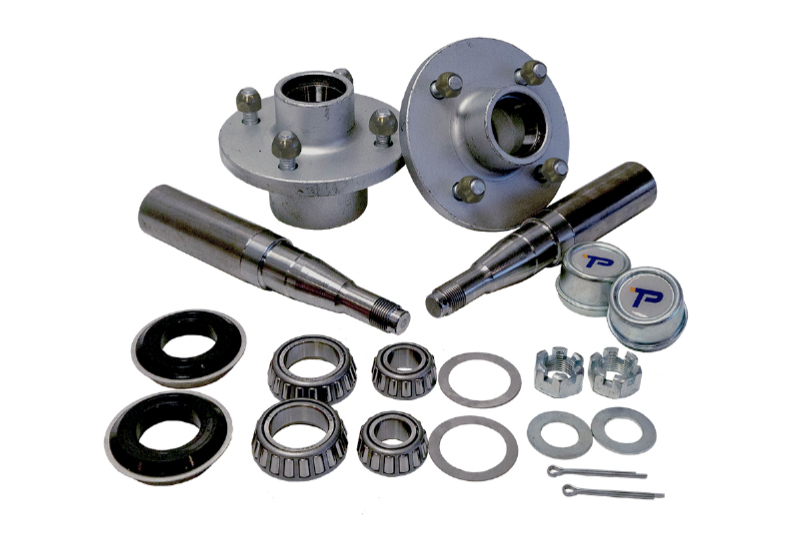

Non-Braked Hub/Stub Sets

A wide range of non-braked hub and stub sets are available, from 1500kg road going through to low speed 6800kg agricultural versions.

Non-Braked Hub/Stub Sets

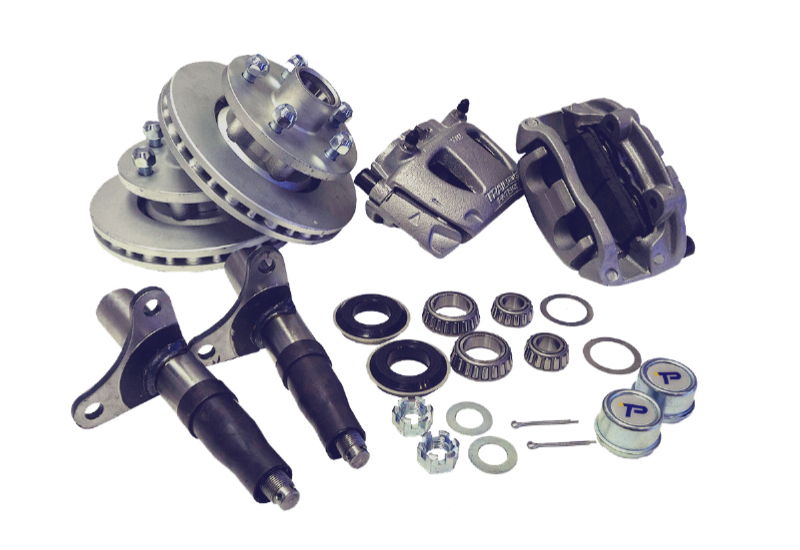

Disc Braked Hub/Stub Sets

The Strike! and Patriot disc brake series are making waves with their industry leading performance and efficiency, whilst featuring the ability to retro-fit to older axles in the marketplace. Other low-cost and full stainless options are also available. Great for marine application.

Disc Braked Hub/Stub Sets

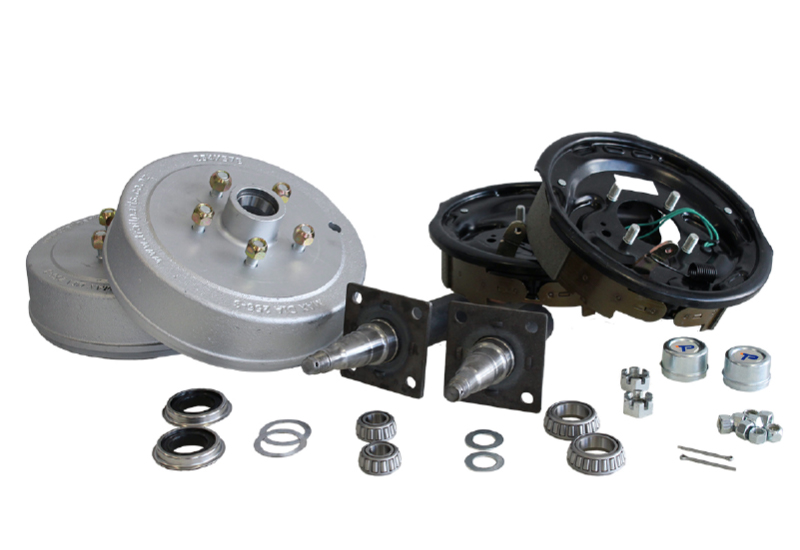

Drum Braked Hub/Stub Sets

A range of drum brakes is available, from lightweight 9” hydraulic to 10" electric versions. Drum brakes still have an active and valued role in trailer brakes, suiting as they do specific applications.

Drum Braked Hub/Stub Sets

Hub Kits & Axle Spare Parts

Spare parts for the complete Trailparts™ range are available ex-stock. These are available in bulk, or as required, retail packaged for display and resale purposes.

Hub Kits & Axle Spare Parts

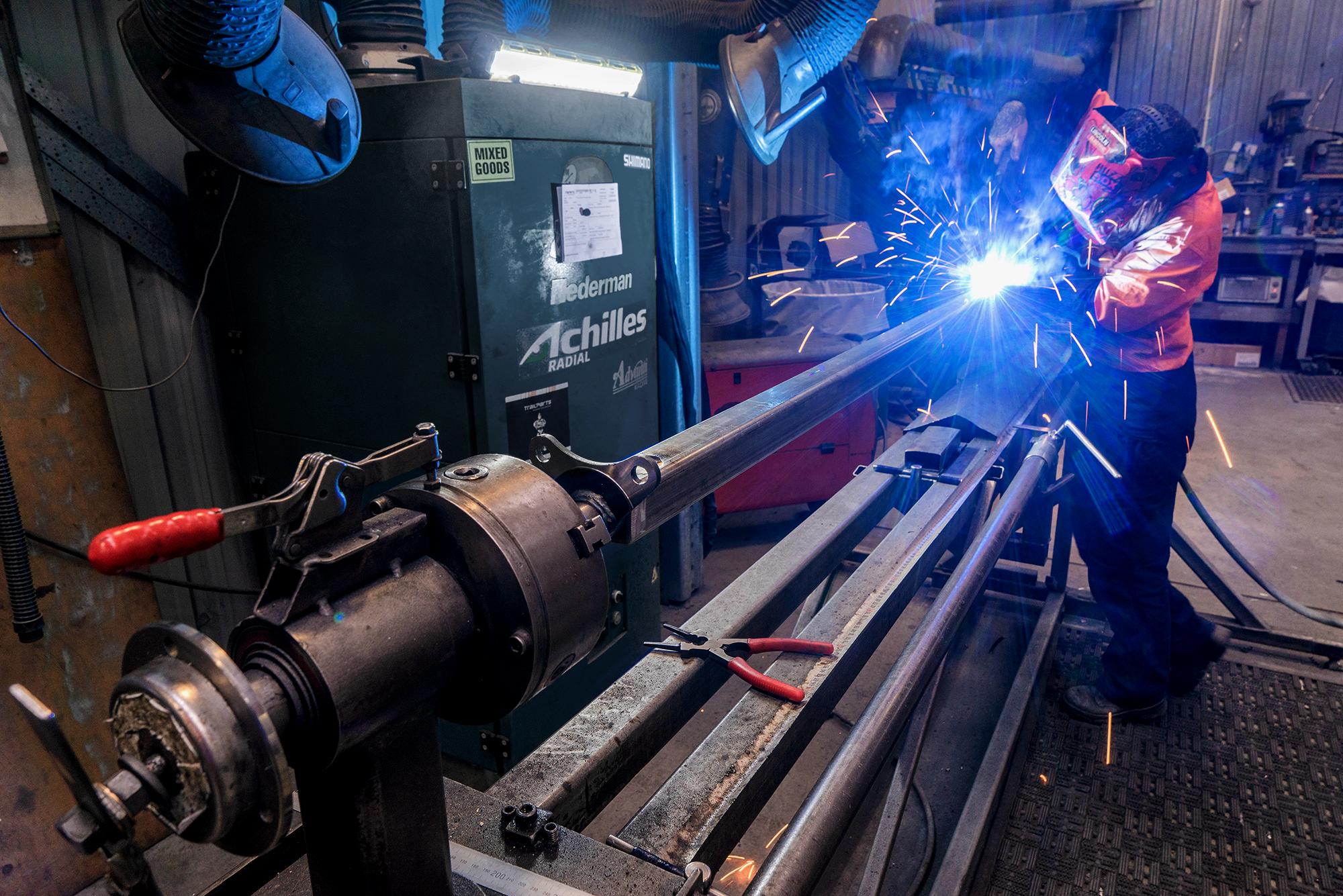

Axle Manufacturing

With all Trailparts™ axle parts, we offer a simple and cost effective “custom axle manufacturing service. These are manufactured and assembled in-house to ensure accuracy and fast turnaround times. Hot dip galvanized and pre-galvanized versions are available, along with other variations such as dropped and gullwing designs.

Axle Manufacturing
