Banjo Stainless Braided Hose
Hydraulic Hose Configurations

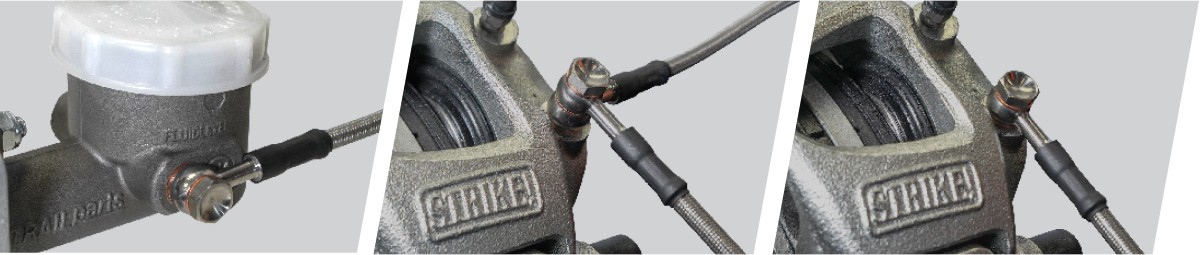

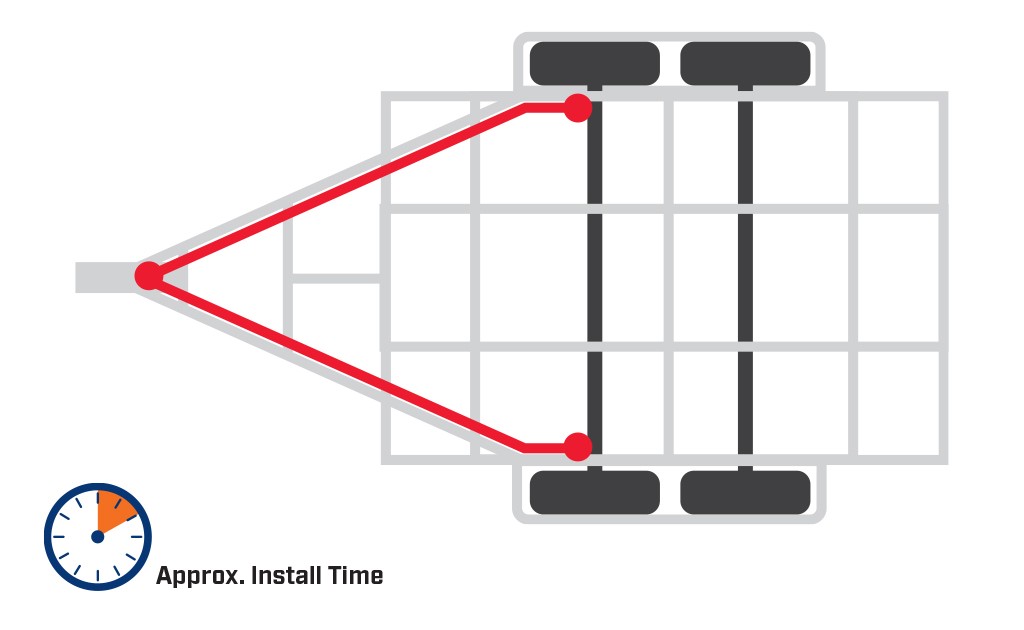

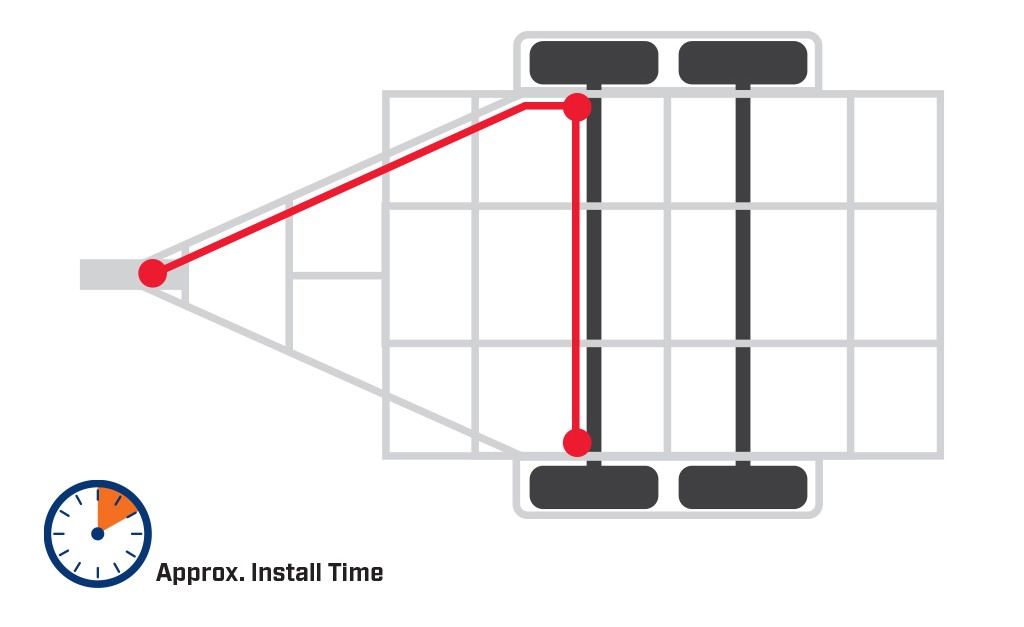

Single Braked Axle - Option 1
x2 Banjo Braided hoses
x2 Single Banjo Bolts
x1 Double Banjo Bolt
x7 Copper Washers

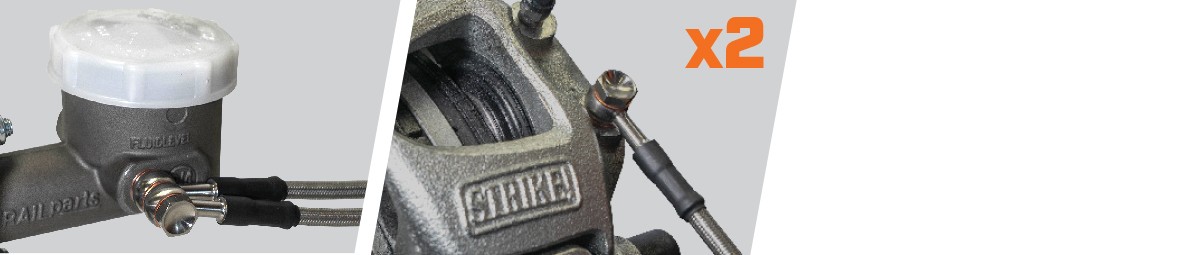

Single Braked Axle - Option 2
x2 Banjo Braided hoses
x2 Single Banjo Bolts
x1 Double Banjo Bolt
x7 Copper Washers

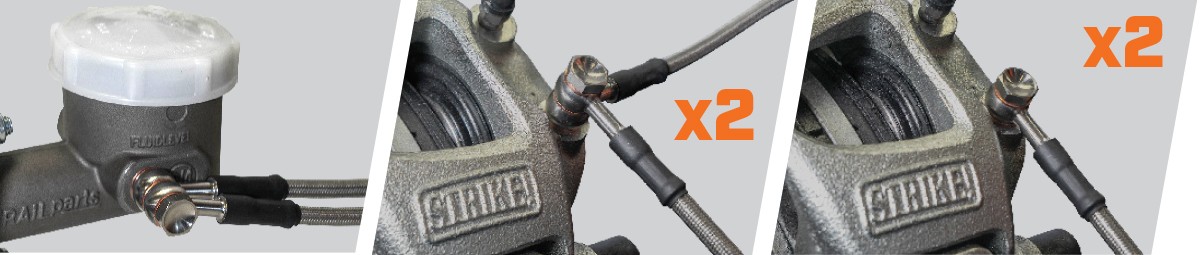

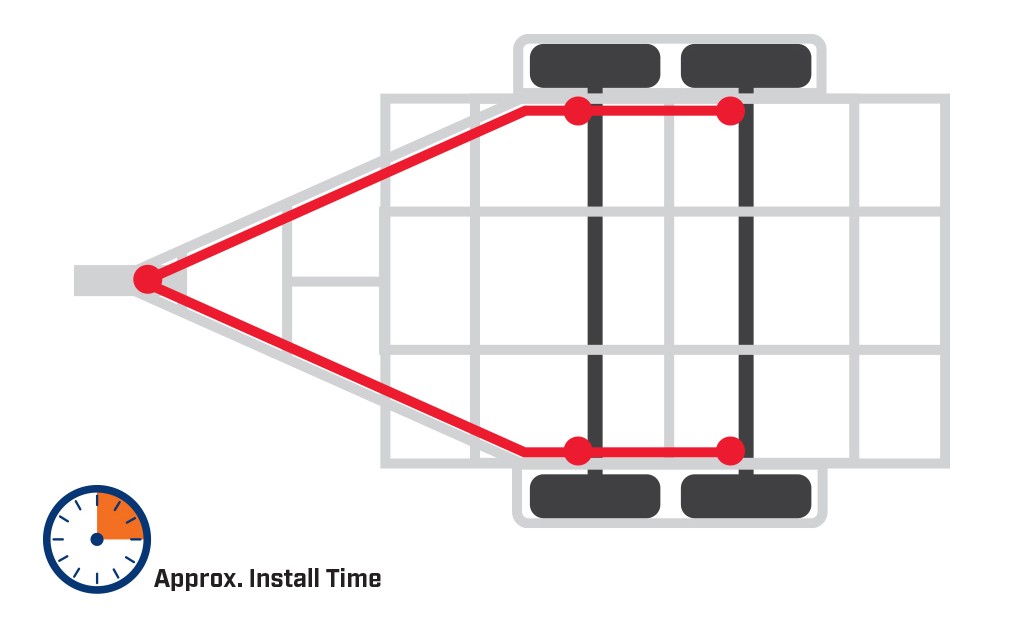

Tandem Braked Axle
x4 Banjo Braided hoses
x2 Single Banjo Bolts
x3 Double Banjo Bolt
x13 Copper Washers

Handbrake Cables
Mechanical Configurations

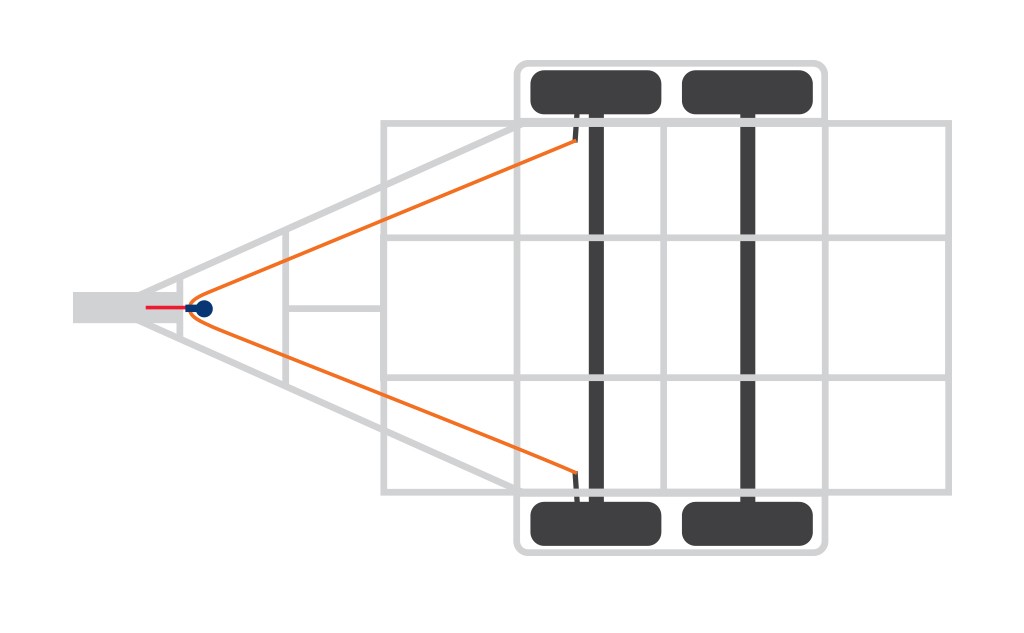

Handbrake on Front axle only
- Calipers mounted on front of axle with forward pull lever.
- Adjustable pulley connected to handbrake lever.
- Wire rope guide should be used to ensure best performance.

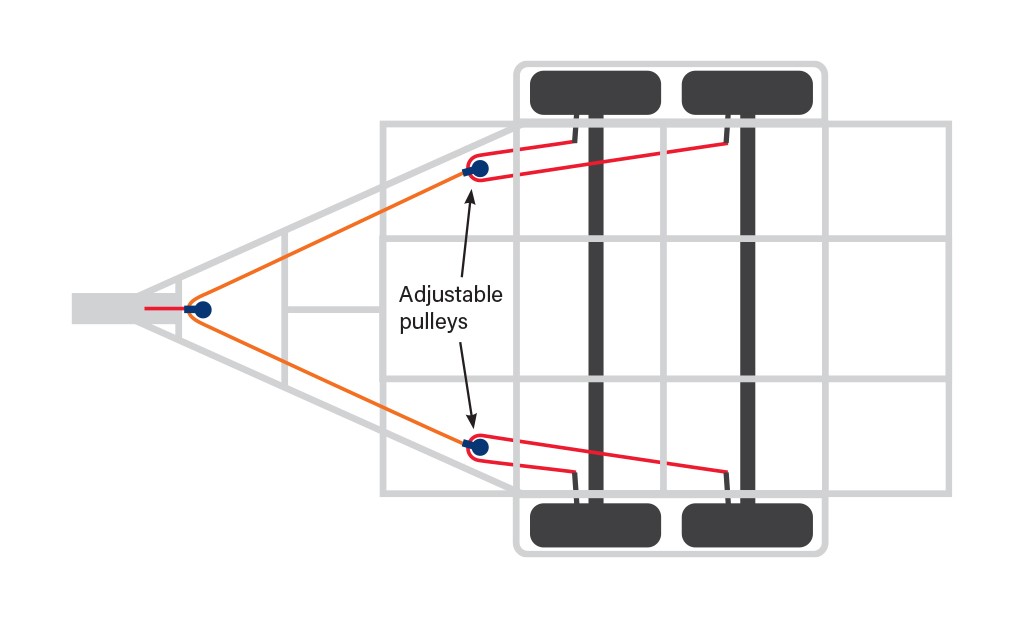

Handbrake on Both axles
- Calipers mounted on front of axles with forward pull lever.
- Adjustable pulley connected to handbrake lever.
- Wire rope guide should be used to ensure best performance.

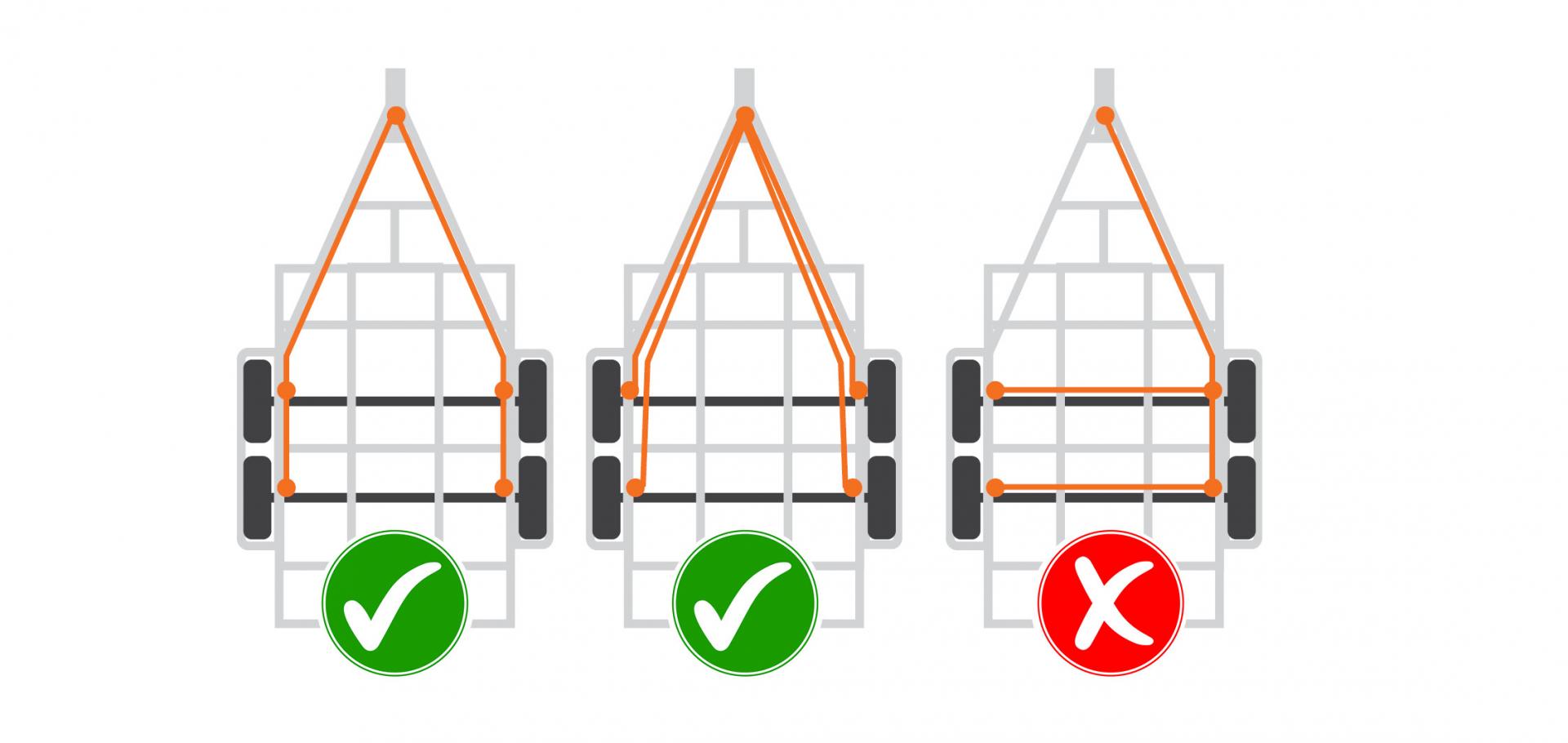

Electric Brake Wiring
Electric Cable Configurations
